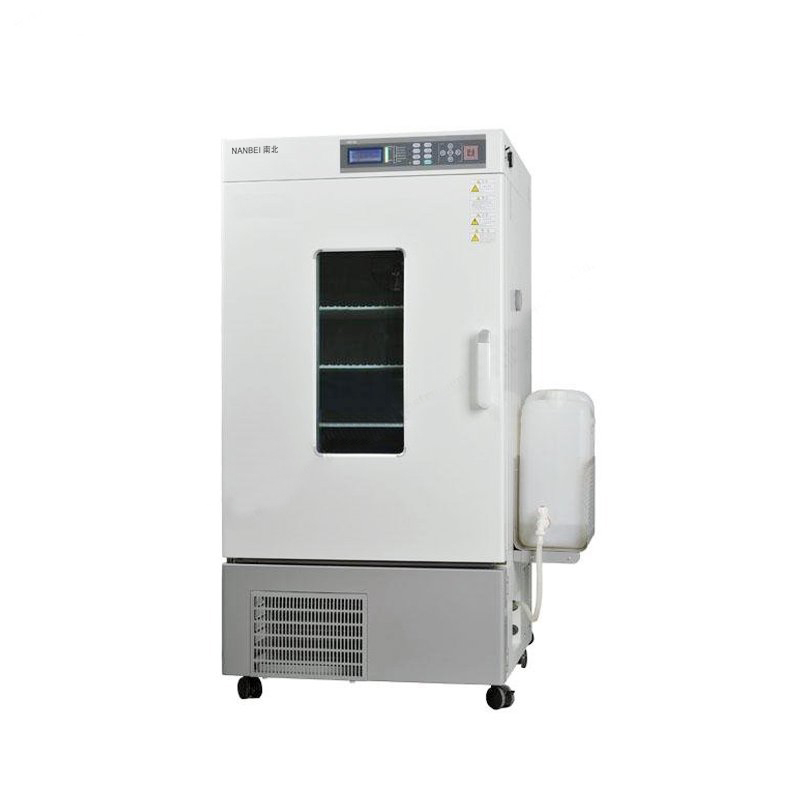

100L Constant temperature and humidity chamber

1.Airduct structureIt applies circular airflow design concept and forced convection simulated air circulation principle. The large power air circulating blades designed specially can produce higher air flow rate and guarantee high even and

 1. Airduct structure   It applies circular airflow design concept and forced convection simulated air circulation principle. The large power air circulating blades designed specially can produce higher air flow rate and guarantee high even and stable inner bag temperature and humidity.

2. Electronic humidity sensor It is used for absolute precise humidity measurement. The humidifying and dehumidifying system is controlled electronically. ROTRONIC electronic humidity sensor can guarantee the reliability of humidity inspection even if the samples are changed frequently. The senor does not require maintenance.

3. Innovative refrigerating system    International famous brand refrigerant compressor and Germany EBM condenser applying 134a refrigerant and featuring fluorine free, environmental protection, precision and high efficiency are applied.

4. Test hole      One test hole with the diameter of 45mm made with special mould is arranged on the left and right of the incubator respectively for observation. Internal silica gel soft plugs are provided to make sure the temperature and humidity inside the incubator are not affected during the test.

5. Easy for maintenance  It is easy to maintain and clean condenser to improve the refrigerating performance and save energy.

6. RS232 interface It is a special interface for PC. One software CD (suitable for simplified Chinese WINDOWS2000 or simplified Chinese WINDOWS XP operating system) is attached. Test program is written, monitored and saved with special PC software. Test data is directly displayed and printed with special PC software.

7. Ponded water inside inner bag can be discharged easily  The inner bag applies side, high, middle and low structures to discharge water easily and keep the incubator clean.

 Application scope: It is mainly applied for long term storage test of drugs, food quality test, environmental test of resin material, auto parts and electrical & electronic appliances, water body analysis, BOD test, bacteria culture, microorganism culture, vaccine storage etc.

Features:

◆ The incubator is made with imported NC machine tool and laser processing technology. The outside incubator body applies high quality cold rolling plate, which is strongly resistant to rusting. The inner bag applies SUS304 stainless plate.

◆ The incubator bottom truckle is imported from Japan. Its direction is adjustable and it can be locked. The outside incubator body is sprayed with American Dupont powder.

◆ One test hole with the diameter of 45mm made with special mould is arranged on the left and right of the incubator respectively for observation. Two silica gel soft plugs are provided inside.

◆ The heat insulating material of incubator applies Germany Bayer freon-free polyurethane one-time foaming technology to improve the insulating property and reduce energy consumption. It can save over 30% energy in comparison with similar products. The overall strength of incubator is good.

◆ Rational airduct structure; balance type control method; imported special electric motor and blade are applied to make temperature and humidity distribution evener and greatly improve test precision and evenness of temperature and humidity.

◆ The defrosted water inside incubator will vaporize through compressor.

◆ International famous brand refrigerant compressor and Germany EBM condenser applying 134a refrigerant and featuring fluorine free, environmental protection are applied and conform to the world trends.

◆ Programmed temperature and humidity control; micro-computer fuzzy control PID control; temperature priority and time priority; optional for the user. Intelligent programmed mode is applied. The control part applies high brightness super large LCD and fuzzy PID control method to be more humanized.

◆ Temperature sensor PT100 applies Honeywell product. The humidity sensor applies Swiss Rotronic capacitive sensor.

◆ Over-temperature protection, creepage protection, door open alarm, current failure alarm and sensor alarm functions are provided to improve the safety. Meanwhile, automatic start, stop, timed operation, clock display and self recover after energization are provided.

◆ Automatic defrosting and manual defrosting functions are provided for long term test to solve the problem of temperature and humidity drifting.

Product parameters:

Product name

CTHI-100B

CTHI-150B

CTHI-250B

CTHI-450B

CTHI-750B

Convection method

Compulsory convection method

Control method

Balance type

Temperature range

  -10℃~+85℃

Humidity control scope

20~95%RH

Temperature resolution

0.1℃

Temperature fluctuation

±0.1℃

Temperature evenness

±0.5℃(65℃)

Humidity fluctuation

Within ±1.5% (65℃)

Working room temperature

5~35℃

Insulating material

Overall foaming of polyurethane

Programmed control

Fuzzy logistic PID control method common operating mode/programmed operating mode

Overall dimension(mm)

W590*D733*H1140

W665*D733*H1300

W765*D773*H1490

W935*D835*H1787

W1435*D835*H1828

Inner dimension (mm)

W465*D400*H540

W540*D400*H700

W640*D440*H890

W750*D500*H1200

W1250*D500*H1200

Weight

About 93KG

About 114.5KG

About 137KG

About 215KG

About 265KG

Effective volume

100L

151L

250L

450L

750L

Total power of heating and humidifying

1000W

1450W

2000W

2500W

3000W

Refrigerating power· refrigerant

175W·R134a

245W·R134a

270W·R134a

580W

880W

Water supply volume

Inside: 10 L Outside: 25 L

Power voltage

AC-220V 50/60HZ

Tray (standard configuration)

Two layers

Three layers

Three layers

Four layers

Four layers
