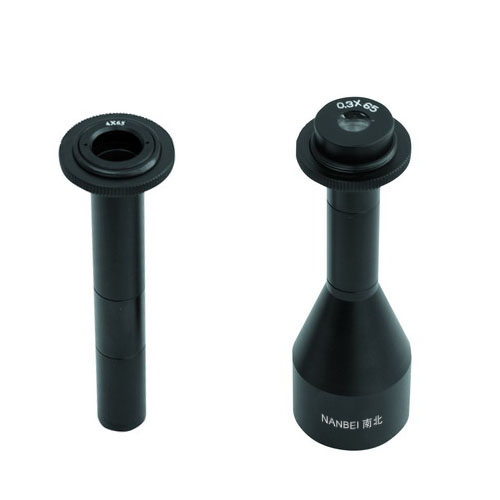

Телецентрическая оптическая система монокулярных микроскопов DXT88
Technical data Model DXT88 Magnification 4X Working distance 65mm Focus range 47mm C-CCDdistance of plckup device 17.53mm avaliable 1/2 1/3 2/3 CCD 1/3CCD，Diameter of visual field:1.5mm Model DX91 Magnification 0.3X Working distance 65mm
Технические данные
| Model | DXT88 |
| Magnification | 4X |
| Working distance | 65mm |
| Focus range | 47mm |
| C-CCDdistance of plckup device | 17.53mm |
| avaliable 1/2" 1/3" 2/3" CCD | |
| 1/3"CCD，Diameter of visual field:1.5mm | |
| Model | DX91 |
| Magnification | 0.3X |
| Working distance | 65mm |
| Focus range | 47mm |
| C-CCDdistance of plckup device | 17.53mm |
| avaliable 1/2" 1/3" 2/3" CCD | |
| 1/3"CCD，Diameter of visual field:20mm | |
