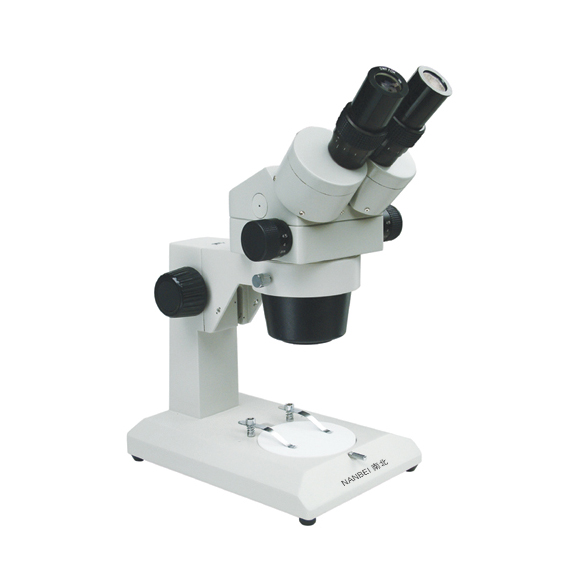

XT-100 Стереомикроскопы

Standard configurations Objective zoom range 1X-2X 1X-3X 2X-4X Eyepice SWF 10X/23mm Working distance 120mm Interpupillary distance adjustment range 55mm-75mm Binocular head inclination of 45 。 Diopter adjustment 5 diopter Optical Body Rot



Standard configurationsСтандартные конфигурации

Objective zoom range 1X-2X 1X-3X 2X-4X
Eyepice SWF 10X/23mm
Working distance 120mm
Interpupillary distance adjustment range 55mm-75mm
Binocular head inclination of 45
Diopter adjustment ±5 diopter
Optical Body Rotation 360 360

Технические данные

Auxiliary Eyepiece Magnification Visual field Working distance(mm)
1X,2X 10X 10X,20X 23,11.5 120
15X 15X,30X 16,8
20X 20X,40X 13,6.5
25X 25X,50X 12,6
1X,3X 10X 10X,30X 23,7.6 120
15X 15X,45X 16,5.3
20X 20X,60X 13,4.3
25X 25X,75X 12,4
2X,4X 10X 20X,40X 11.5,5.7 120
15X 30.X,60X 8,4
20X 40X,80X 6.5,3.3
25X 50X,100X 6,3
1X,4X 10X 10X,40X 23,5.7 120
15X 15X,60X 16,4
20X 20X,80X 13,3.3
25X 25X,100X 12,3
