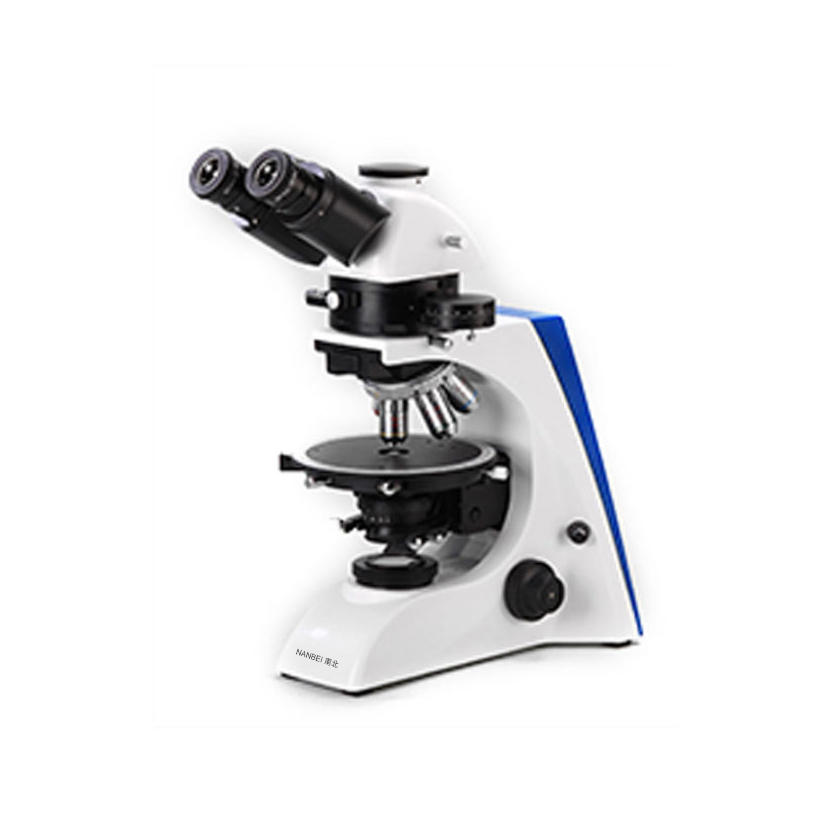

Поляризационный микроскоп БК-ПОЛР

Eyepiece

WF 10X-18mm

●

WF 10X-18 mm (Reticule 0.1mm)

●

Non-stress
Infinity
Plan Objective

4×

●

10×

●

20× (S)

●

40× (S)

●

60× (S)

●

Seidentopf Binocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.

●

Trinocular Head

Inclined 30°, Rotatable 360°,
Interpupilary Distance:  50-75mm.
Light Distribution: 0:100

○

Nosepiece

Quintuple

●

Polarizing Unit

Rotatable 360°(Module Type, Can Be Locked)

●

Bertrand Lens

Inbuilt, Center Adjustable

●

λSlip

First Class Red

●

1/4λSlip

●

Quartz Wedge

(Ⅰ-Ⅳ Class)

●

Revolving Round Stage

Rotatable 360°, Center Adjustable, Division 1°, Vernier division 6’

●

Polarizing Attached Mechanical Stage

○

Condenser

Abbe N.A. 1.25      Non-stress

●

Polarizing Unit with Scale

Rotatable 360°,
Can Be Locked

●

Koehler Illumination

6V/20W Halogen Lamp

●

6V/30W Halogen Lamp

○

2 A Fuse

Spare: 1 pc

●

Filter

Blue,

●

Amber

○

Green

○

Neutral

○

C-mount

0.57×(Focus Adjustable),  1×

○

Adaptor for Digital Camera

○

Reflecting Polarizing Unit

Halogen Lamp House 12V/50W

●

Power House

●

Diaphragm Choosing Slide

●

Polarizer Choosing Slide

●
